I am struggling to encode an H265 video using NVenc with HDR metadata.
I have selected the HDR patch option which results in a crash for the nvhsp job. I did some reading and I found a change log for a version of Hybrid that shifted from nvhsp to NVencC. I have built and installed NVencC, however, I am unable to get Hybrid to find it.
I really just need some advice on how to encode 265 with NVIDIA hardware encoding AND HDR metadata.
The log is from the last July version of Hybrid, I have the same problem on the latest august version.
Posts: 10.626
Threads: 57
Joined: May 2017
Since Hybrid dropped support for 'FFmpeg (NVEnc)' on Windows systems with Hybrid version '2020.06.21.1'.
Hybrid has been using NVEncC itself to add HDR metadata instead of nvhsvp since '2018.04.08.1'.
Since you didn't attach a debug output or even mention what OS you are on I can't really say much aside from that if you are on Windows and you are using NVEncC you might need to update your drivers since NVEncC or use an older NVEncC version, because starting with version 5.10:
Add support for NVENC SDK API ver 10.0. This requires NVIDIA driver 445.87 or later.
you will need newer drivers.
If you are on Windows and want to use 'FFmpeg (NVEnc)' you need to stick to a Hybrid version before '2020.06.21.1', but remember I only support the latest Hybrid version.
If you are on Linux, the only ways to add HDR meta data atm. are either using nvhsp or using mkv as container and add them through container tags (Config->Output->MKV Container->Matroska advanced video signaling).
-> share more details about what you are doing and what OS you are in and I might be able to help further.
Cu Selur
----
Dev versions are in the 'experimental'-folder of my GoogleDrive, which is linked on the download page.
Posts: 8
Threads: 2
Joined: Jan 2018
(04.08.2020, 04:40)Selur Wrote: Since Hybrid dropped support for 'FFmpeg (NVEnc)' on Windows systems with Hybrid version '2020.06.21.1'.
Hybrid has been using NVEncC itself to add HDR metadata instead of nvhsvp since '2018.04.08.1'.
Since you didn't attach a debug output or even mention what OS you are on I can't really say much aside from that if you are on Windows and you are using NVEncC you might need to update your drivers since NVEncC or use an older NVEncC version, because starting with version 5.10:
Add support for NVENC SDK API ver 10.0. This requires NVIDIA driver 445.87 or later.
If you are on Windows and want to use 'FFmpeg (NVEnc)' you need to stick to a Hybrid version before '2020.06.21.1', but remember I only support the latest Hybrid version.
If you are on Linux, the only ways to add HDR meta data atm. are either using nvhsp or using mkv as container and add them through container tags (Config->Output->MKV Container->Matroska advanced video signaling).
-> share more details about what you are doing and what OS you are in and I might be able to help further.
Cu Selur

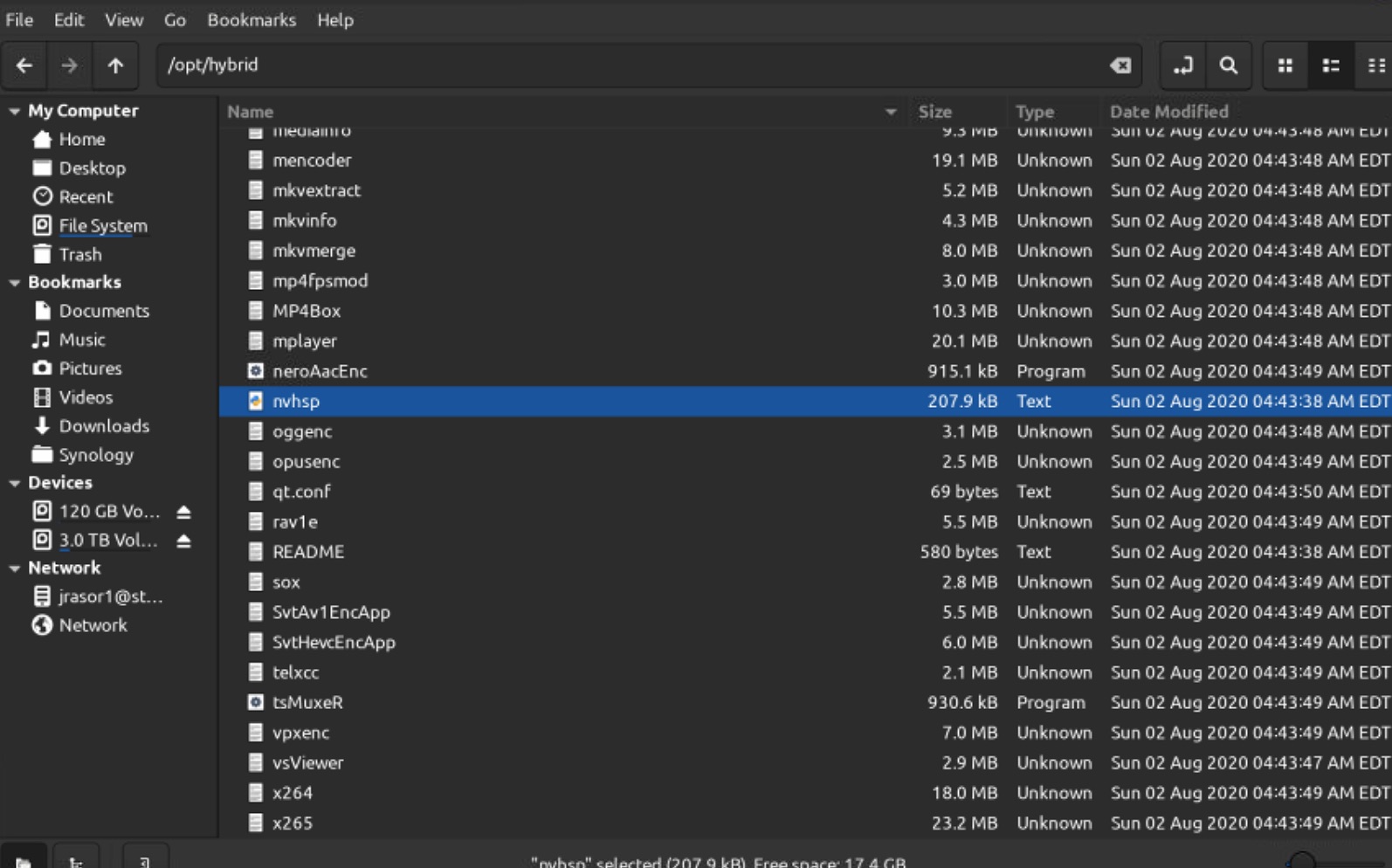

Woah totally didn't see the 'add attachment' button when I made this post. I'm currently using Linux Mint 20 with the most current 450 Nvidia Drivers. I have attempted to use the 'hdr patch' option to activate nvhsp, however, i keep getting an absolute path error. I have verified that nvhsp is in the hybrid directory. When I click on the nvhsp button on the tool list to pick a different directory, nothing happens like when i click on all the other ones. Will hybrid support NEVencC under linux? I would prefer not to use the mkv advanced signaling as I've read it does not perform the same way.[attachment=958]
Also... if advanced MKV signaling is the only option - is there a way to make hybrid pull it from the source like the hdr patch option does?
Posts: 10.626
Threads: 57
Joined: May 2017
Quote:Also... if advanced MKV signaling is the only option - is there a way to make hybrid pull it from the source like the hdr patch option does?
Nope, there's no automation for that. (It is planned in the future, but probably not any time soon.)
The 'set absolute paths crashed,...' is strange seems like Hybrid doesn't know where to find nvhsp.
Does "Config->Tools" show the path to nvhsp ?
Cu Selur
----
Dev versions are in the 'experimental'-folder of my GoogleDrive, which is linked on the download page.
Posts: 8
Threads: 2
Joined: Jan 2018
(04.08.2020, 17:15)Selur Wrote: Quote:Also... if advanced MKV signaling is the only option - is there a way to make hybrid pull it from the source like the hdr patch option does?
Nope, there's no automation for that. (It is planned in the future, but probably not any time soon.)
The 'set absolute paths crashed,...' is strange seems like Hybrid doesn't know where to find nvhsp.
Does "Config->Tools" show the path to nvhsp ?
Cu Selur
Yes. When I click on the nvhsp button to try to select a different directory (a downloaded copy of nvhsp) nothing happens, it doesn't bring up the open directory window like the rest of the tools do.
Posts: 10.626
Threads: 57
Joined: May 2017
No clue atm. why the nvhsp path info isn't given to the job processing.
-> I'll look into it tomorrow after work. (no time today, since I'm not home until bed time)
Cu Selur
----
Dev versions are in the 'experimental'-folder of my GoogleDrive, which is linked on the download page.
Posts: 10.626
Threads: 57
Joined: May 2017
Sorry, didn't find time to look into it since the vapoursynth build scripts seem to be broken,.. :/
Cu Selur
----
Dev versions are in the 'experimental'-folder of my GoogleDrive, which is linked on the download page.
Posts: 8
Threads: 2
Joined: Jan 2018
(06.08.2020, 21:11)Selur Wrote: Sorry, didn't find time to look into it since the vapoursynth build scripts seem to be broken,.. :/
Cu Selur
Well that explains the VapourSynth script issue...
Posts: 8
Threads: 2
Joined: Jan 2018
Posts: 10.626
Threads: 57
Joined: May 2017
22.08.2020, 20:01
(This post was last modified: 22.08.2020, 22:16 by Selur.)
(Vapoursynth build script works, there had even been a Hybrid release till then)
"Config->Output->MKV Container->Matroska advanced video signaling" has an 'Import HDR Data from source' button.
Totally forgot about the nvhsp absolute path issue.
-> I'll look into it.
Cu Selur
----
