Using Hybrid 2019.03.13.1 / Win7 SP1

I noticed that the LimitedSharpen-Faster-Mod filter is identical for both Avisynth and Vapoursynth, except for Skernal.

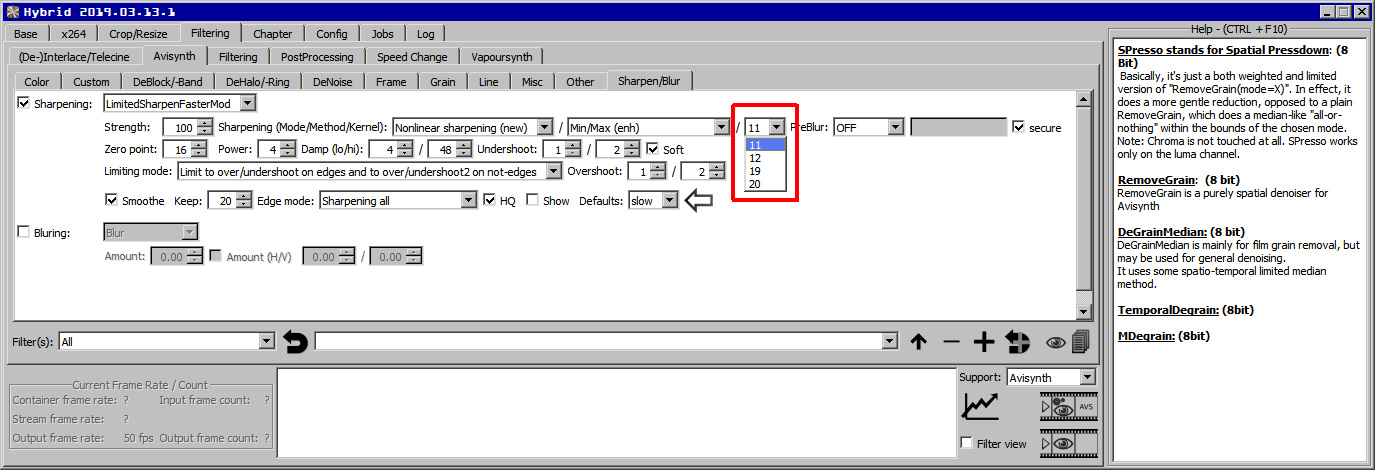

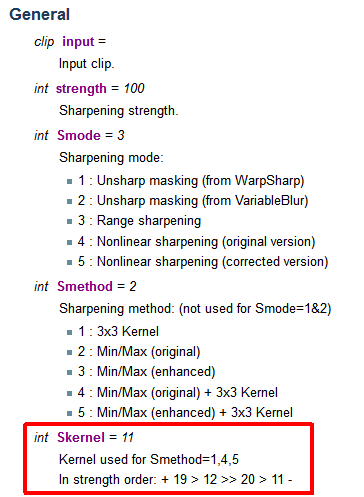

Avisynth appears to be correct and match http://avisynth.nl/index.php/LSFmod:

[attachment=674]

[attachment=676]

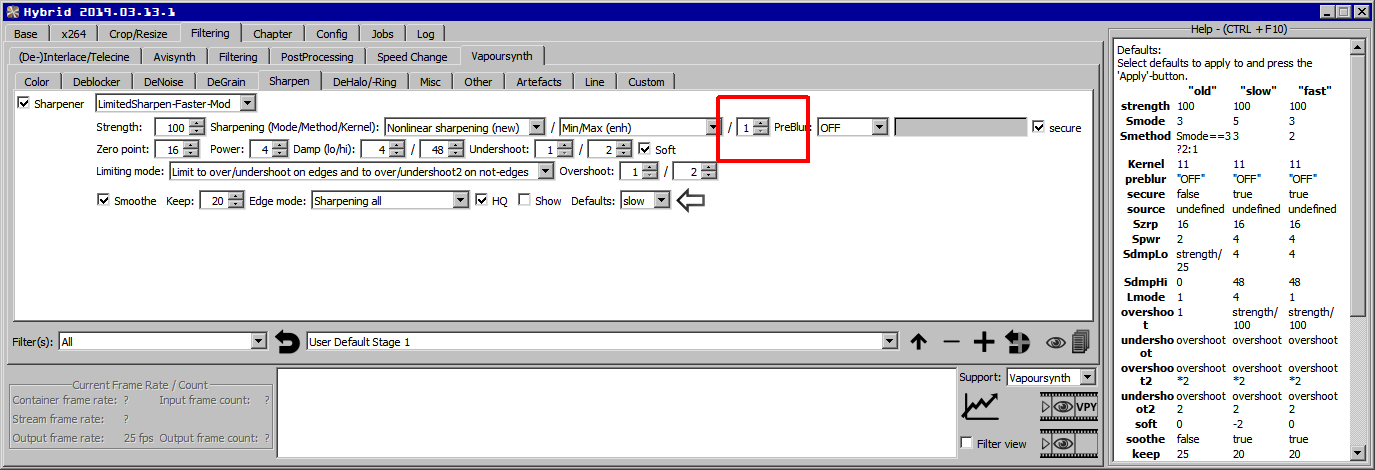

However, Vapoursynth instead has options 1 - 6:

[attachment=675]

On Avisynth, the defaults for presets "old", "fast", and "slow" are 11.

On Vaporsynth, the button that applies the preset defaults does not affect the Skernal option 1 - 6. Its initial state is 1.

Is that a bug for this filter on Vaporsynth, or correct behavior?

Also, shouldn't the Skernel field really be disabled/greyed for options other than the 3x3 Kernel options for Smethod?

Vapoursynth uses LSFMod from havsfunc:

Code:
################################################################################################

###                                                                                          ###

###                       LimitedSharpenFaster MOD : function LSFmod()                       ###

###                                                                                          ###

###                                Modded Version by LaTo INV.                               ###

###                                                                                          ###

###                                  v1.9 - 05 October 2009                                  ###

###                                                                                          ###

################################################################################################

###

### +-----------+

### | CHANGELOG |

### +-----------+

###

### v1.9 : - tweaked settings

###        - default preset is now defaults="fast" /!\

###

### v1.8 : - changed preblur to allow more tweaking (bool->string)

###        - tweaked settings

###        - cleaned the code

###        - updated documentation

###

### v1.7 : - changed Smethod=4 to "source"

###

### v1.6 : - added preblur option

###        - added new Smethod=4

###

### v1.5 : - fixed LUT expression (thanks to Didée)

###        - changed Smethod to Smethod+secure

###

### v1.4 : - changed defaults="new" to defaults="slow" & defaults="fast"

###        - added show parameter

###        - cleaned a little the code

###

### v1.3 : - changed a little Smethod=3&5 (same effect, but more precise)

###        - added new calculation for soft (soft=-2) [default on]

###        - added warning about bad settings (no more silent)

###        - updated the documentation

###

### v1.2 : - added new Lmode<0 (limit with repair)

###        - added 2 new Smode (unsharp masking)

###        - changed Smode order: now old Smode3-4 is new Smode3-4 to avoid mistake

###

### v1.1 : - fixed a bug with dest_x!=ox or dest_y!=oy

###        - replaced Lfactor by over/undershoot2

###

### v1.0 : - deleted old Smode(1-4), added new Smode(1-3) & Smethod(1-5)

###        - added parameters for nonlinear sharpening (S2zp,S2pwr,S2dmpLo,S2dmpHi)

###        - corrected the nonlinear formula

###        - added new Lmode 2 & 4 + fixed Lmode 0

###        - added faster edgemask

###        - added soothe temporal stabilization, 2 parameters: soothe & keep

###        - replaced lanczosresize by spline36resize

###        - moved "strength" parameter (first place)

###        - deleted wide, special and exborder

###        - changed some code (cosmetic)

###        - added "defaults" parameter (to switch between original and modded version)

###        - added documentation

###

###

###

### +--------------+

### | DEPENDENCIES |

### +--------------+

###

### -> RGVS

###

###

###

### +---------+

### | GENERAL |

### +---------+

###

### strength [int]

### --------------

### Strength of the sharpening

###

### Smode [int: 1,2]

### ----------------------

### Sharpen mode:

###    =1 : Range sharpening

###    =2 : Nonlinear sharpening (corrected version)

###

### Smethod [int: 1,2,3]

### --------------------

### Sharpen method:

###    =1 : 3x3 kernel

###    =2 : Min/Max

###    =3 : Min/Max + 3x3 kernel

###

### kernel [int: 11,12,19,20]

### -------------------------

### Kernel used in Smethod=1&3

### In strength order: + 19 > 12 >> 20 > 11 -

###

###

###

### +---------+

### | SPECIAL |

### +---------+

###

### preblur [bool]

### --------------------------------

### Mode to avoid noise sharpening & ringing

###

### secure [bool]

### -------------

### Mode to avoid banding & oil painting (or face wax) effect of sharpening

###

### source [clip]

### -------------

### If source is defined, LSFmod doesn't sharp more a denoised clip than this source clip

### In this mode, you can safely set Lmode=0 & PP=off

###    Usage:   denoised.LSFmod(source=source)

###    Example: last.FFT3DFilter().LSFmod(source=last,Lmode=0,soft=0)

###

###

###

### +----------------------+

### | NONLINEAR SHARPENING |

### +----------------------+

###

### Szrp [int]

### ----------

### Zero Point:

###    - differences below Szrp are amplified (overdrive sharpening)

###    - differences above Szrp are reduced   (reduced sharpening)

###

### Spwr [int]

### ----------

### Power: exponent for sharpener

###

### SdmpLo [int]

### ------------

### Damp Low: reduce sharpening for small changes [0:disable]

###

### SdmpHi [int]

### ------------

### Damp High: reduce sharpening for big changes [0:disable]

###

###

###

### +----------+

### | LIMITING |

### +----------+

###

### Lmode [int: ...,0,1,2,3,4]

### --------------------------

### Limit mode:

###    <0 : Limit with repair (ex: Lmode=-1 --> repair(1), Lmode=-5 --> repair(5)...)

###    =0 : No limit

###    =1 : Limit to over/undershoot

###    =2 : Limit to over/undershoot on edges and no limit on not-edges

###    =3 : Limit to zero on edges and to over/undershoot on not-edges

###    =4 : Limit to over/undershoot on edges and to over/undershoot2 on not-edges

###

### overshoot [int]

### ---------------

### Limit for pixels that get brighter during sharpening

###

### undershoot [int]

### ----------------

### Limit for pixels that get darker during sharpening

###

### overshoot2 [int]

### ----------------

### Same as overshoot, only for Lmode=4

###

### undershoot2 [int]

### -----------------

### Same as undershoot, only for Lmode=4

###

###

###

### +-----------------+

### | POST-PROCESSING |

### +-----------------+

###

### soft [int: -2,-1,0...100]

### -------------------------

### Soft the sharpening effect (-1 = old autocalculate, -2 = new autocalculate)

###

### soothe [bool]

### -------------

###    =True  : Enable soothe temporal stabilization

###    =False : Disable soothe temporal stabilization

###

### keep [int: 0...100]

### -------------------

### Minimum percent of the original sharpening to keep (only with soothe=True)

###

###

###

### +-------+

### | EDGES |

### +-------+

###

### edgemode [int: -1,0,1,2]

### ------------------------

###    =-1 : Show edgemask

###    = 0 : Sharpening all

###    = 1 : Sharpening only edges

###    = 2 : Sharpening only not-edges

###

### edgemaskHQ [bool]

### -----------------

###    =True  : Original edgemask

###    =False : Faster edgemask

###

###

###

### +------------+

### | UPSAMPLING |

### +------------+

###

### ss_x ; ss_y [float]

### -------------------

### Supersampling factor (reduce aliasing on edges)

###

### dest_x ; dest_y [int]

### ---------------------

### Output resolution after sharpening (avoid a resizing step)

###

###

###

### +----------+

### | SETTINGS |

### +----------+

###

### defaults [string: "old" or "slow" or "fast"]

### --------------------------------------------

###    = "old"  : Reset settings to original version (output will be THE SAME AS LSF)

###    = "slow" : Enable SLOW modded version settings

###    = "fast" : Enable FAST modded version settings

###  --> /!\ [default:"fast"]

###

###

### defaults="old" :  - strength    = 100

### ----------------  - Smode       = 1

###                   - Smethod     = Smode==1?2:1

###                   - kernel      = 11

###

###                   - preblur     = false

###                   - secure      = false

###                   - source      = undefined

###

###                   - Szrp        = 16

###                   - Spwr        = 2

###                   - SdmpLo      = strength/25

###                   - SdmpHi      = 0

###

###                   - Lmode       = 1

###                   - overshoot   = 1

###                   - undershoot  = overshoot

###                   - overshoot2  = overshoot*2

###                   - undershoot2 = overshoot2

###

###                   - soft        = 0

###                   - soothe      = false

###                   - keep        = 25

###

###                   - edgemode    = 0

###                   - edgemaskHQ  = true

###

###                   - ss_x        = Smode==1?1.50:1.25

###                   - ss_y        = ss_x

###                   - dest_x      = ox

###                   - dest_y      = oy

###

###

### defaults="slow" : - strength    = 100

### ----------------- - Smode       = 2

###                   - Smethod     = 3

###                   - kernel      = 11

###

###                   - preblur     = false

###                   - secure      = true

###                   - source      = undefined

###

###                   - Szrp        = 16

###                   - Spwr        = 4

###                   - SdmpLo      = 4

###                   - SdmpHi      = 48

###

###                   - Lmode       = 4

###                   - overshoot   = strength/100

###                   - undershoot  = overshoot

###                   - overshoot2  = overshoot*2

###                   - undershoot2 = overshoot2

###

###                   - soft        = -2

###                   - soothe      = true

###                   - keep        = 20

###

###                   - edgemode    = 0

###                   - edgemaskHQ  = true

###

###                   - ss_x        = 1.50

###                   - ss_y        = ss_x

###                   - dest_x      = ox

###                   - dest_y      = oy

###

###

### defaults="fast" : - strength    = 100

### ----------------- - Smode       = 1

###                   - Smethod     = 2

###                   - kernel      = 11

###

###                   - preblur     = false

###                   - secure      = true

###                   - source      = undefined

###

###                   - Szrp        = 16

###                   - Spwr        = 4

###                   - SdmpLo      = 4

###                   - SdmpHi      = 48

###

###                   - Lmode       = 1

###                   - overshoot   = strength/100

###                   - undershoot  = overshoot

###                   - overshoot2  = overshoot*2

###                   - undershoot2 = overshoot2

###

###                   - soft        = 0

###                   - soothe      = true

###                   - keep        = 20

###

###                   - edgemode    = 0

###                   - edgemaskHQ  = false

###

###                   - ss_x        = 1.25

###                   - ss_y        = ss_x

###                   - dest_x      = ox

###                   - dest_y      = oy

###

################################################################################################

def LSFmod(input, strength=100, Smode=None, Smethod=None, kernel=11, preblur=False, secure=None, source=None,

           Szrp=16, Spwr=None, SdmpLo=None, SdmpHi=None, Lmode=None, overshoot=None, undershoot=None, overshoot2=None, undershoot2=None,

soft=None, soothe=None, keep=None, edgemode=0, edgemaskHQ=None, ss_x=None, ss_y=None, dest_x=None, dest_y=None, defaults='fast')

source: https://github.com/HomeOfVapourSynthEvol...avsfunc.py

Quote:Also, shouldn't the Skernel field really be disabled/greyed for options other than the 3x3 Kernel options for Smethod?

Description above says:

Code:
Kernel used in Smethod=1&3

### In strength order: + 19 > 12 >> 20 > 11 -

-> will try look at it once I'm back from work today or at the weekend.

Cu Selur

Ps.: Yes, LSFmod in Avisynth and Vapoursynth differs.

Seems like LSFMod changed a lot in the Vapoursynth version over the years and I didn't notice it.
-> This will take a while

=> send you a link to a dev version for testing
